AFPT1000E Xe nâng Pallet có thể điều chỉnh

The Features of Adjustable Fork Pallet Truck

  • Fork width can be adjusted from 345mm to 675mm, it makes it suitable for all kinds of trays.
  • The adjust handle is on the side, which is more convenient
  • The adjustment is smooth and effortless.
  • Handle foldable
Sự chỉ rõGuide to Safety Operation
i-Nâng số
Mô hìnhAFPT1000E
Dung tảikg (lb.)1000(2200)
Trung tâm tảimm (bằng.)600(23.6)

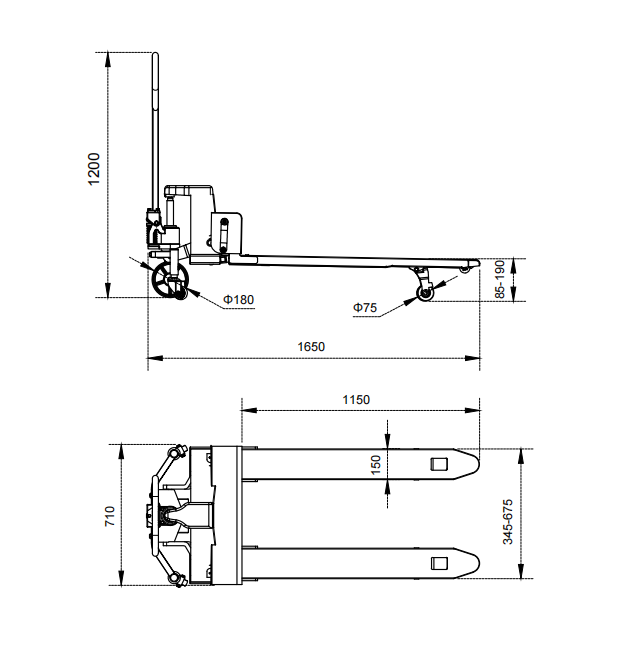

LxWxHmm (bằng.)1650x710x1200(65x28x47.2)
Chiều dài ngã bamm (bằng.)1220(48)
Chiều rộng ngã ba cá nhânmm (bằng.)150(5.9)
Chiều rộng ngã ba có thể điều chỉnhmm (bằng.)345~675(13.6~26.6)
Tối đa Chiều cao ngã bamm (bằng.)180(7.1)
Min. Chiều cao ngã bamm (bằng.)70(2.8)
Con lăn tải trướcmm (bằng.)Φ75x95(Φ2.95x3.74)
Bánh xemm (bằng.)Φ180x50(Φ7.08x1.97)
Khối lượng tịnhkg (lb.)122(268.4)

Để vận hành an toàn Xe tải Pallet cầm tay, vui lòng đọc tất cả các dấu hiệu cảnh báo và hướng dẫn tại đây và trên xe tải pallet trước khi sử dụng.

  • Do not operate the pallet truck unless you are familiar with it and have been trained or authorized to do so.
  • Do not operate the truck unless you have checked its condition. Give special attention to the wheels, the handle assembly, the forks, the distance between the forks, lift, and the lower control.
  • Do not use the truck on sloping ground.
  • Never place any part of your body in the lifting mechanism or under the forks or load. Do not carry passengers.
  • We advise that operator should wear gloves and safety shoes
  • Do not handle unstable or loosely stacked loads.
  • Do not overload the truck.
  • When possible, operate the truck with maximum distance between forks.
  • Always place loads centrally across the forks and not at the end of the forks.
  • The capacity of the truck assumes an evenly distributed load with the center of the load being at the halfway point of the length of the forks.
  • Lower the forks to lowest height when the truck is not being used.
  • In other specific conditions, the operator should take extra care in operating the truck.
